Vision system

In contrast with the simple sensors explored earlier, vision systems are much more complex, which results in substantial hardware, optics, and imaging silicon. Vision systems start with a lens that observes a scene. A lens provides focus, but also provides more light saturation to the sensing element. In modern vision systems, one of two types of sensing elements is used: charge-coupled devices (CCD), or complementary metal-oxide (CMOS) devices.  The difference between CMOS and CCD can be generalized as:

• CCD: Charge is transported from the sensor to the edge of the chip to be sampled sequentially via an analog-to-digital converter. CCDs create high-resolution and low-noise images. They consume considerable power (100x that of CMOS). They also require a unique manufacturing process.
• CMOS: Individual pixels contain transistors to sample the charge and allow each pixel to be read individually. CMOS is more susceptible to noise, but uses little power.

Most sensors are built using CMOS in today's market. A CMOS sensor is integrated into a silicon die that appears as a two-dimensional array of transistors arranged in rows and columns over a silicon substrate. A series of microlenses will sit upon each red, green, or blue sensor focusing incidental rays onto transistor elements. Each of these microlenses attenuates a specific color to a specific set of photodiodes (R, G, or B) that respond to the level of light; however, lenses are not perfect. They can add chromatic aberrations where different wavelengths refract at different rates, which leads to different focal lengths and blur. A lens can also distort an image, causing pincushioning effects.

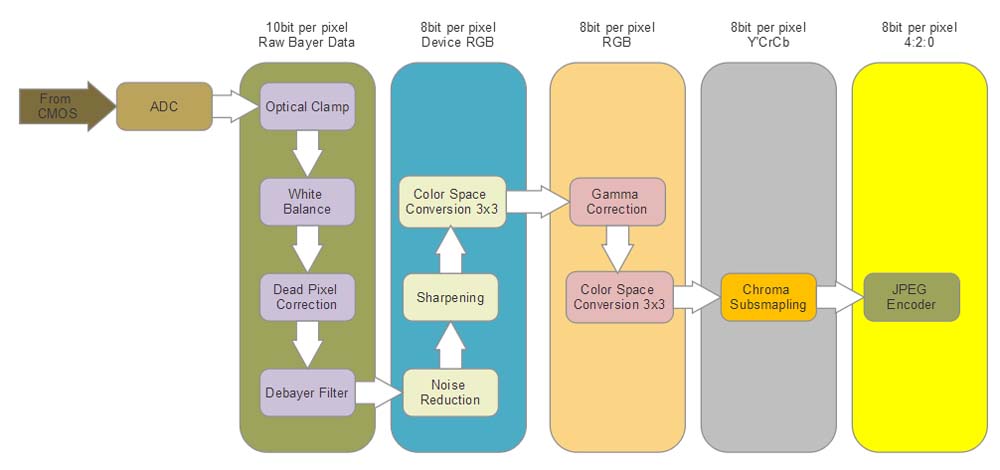

Next will come a series of steps to filter, normalize, and convert the image several times into a usable digital image. This is the heart of the image signal processor (ISP), and the steps may be followed in this order:

Note the numerous conversions and processing of each stage of the pipeline for each pixel in the image. The amount of data and processing requires substantial custom silicon or digital signal processors. The following lists the functional block responsibilities in the pipeline:

• Analog-to-digital conversion: Amplification of sensor signal then converted to digital form (10-bit). Data is read in from the photodiode sensor array as a flattened series of rows/columns representing the image just captured.
• Optical clamp: Removes sensor biasing effects due to sensor black level.
• White balance: Mimics chromatic display in the eye for different color temperatures, and neutral tones appear neutral. Performed using matrix conversions.
• Dead pixel correction: Identifies dead pixels, and compensates for their loss using interpolation, dead pixels are replaced with the average of neighboring pixels.
• Debayer filtering and demosaicing: Arranges RGB data to saturate green over red and blue content for luminance sensitivity adjustment. Also creates a planar format of images from sensor-interlaced content. More advanced algorithms preserve edges in images.
• Noise reduction: All sensors introduce noise. Noise can be associated with the non-uniformity of pixel sensitivity at a transistor level, or leakage of the photodiode, revealing dark regions. Other forms of noise exist as well. This phase removes white and coherent noise introduced in the image capture through a median filter (3 x 3 array) across all pixels. Alternatively, a despeckle filter can be used, requiring pixels to be sorted, and other methods exist as well. However, they all walk the pixel matrix.
• Sharpening: Applies a blur to an image using a matrix multiplication, then combines the blur with detail in content regions to create a sharpening effect.
• Color space conversion 3 x 3: Color space conversion to RGB data for RGB particular treatments.
• Gamma Correction: Corrects for CMOS image sensor nonlinear response on RGB data to different irradiance. Gamma correction uses a look-up table (LUT) to interpolate and correct an image.
• Color Space Conversion 3 x 3: Additional color space conversion from RGB to Y'CbCr format. YCC was chosen, since Y can be stored at a higher resolution than CbCr without the loss of visual quality. 4:2:2 bit representation.
• Chroma subsampling: Due to nonlinearities in RGB tones, this phase corrects images to mimic other media such as film for tonal matching and quality.
• JPEG encoder: Standard JPEG compression algorithm.

It should be emphasized here that this is a good example of how complex a sensor can be, and how much data, hardware, and complexity can be attributed to a simple vision system. The amount of data passing through a vision system or camera at a conservative 60 frames per second at 1080p resolution is massive. Assuming all the phases (except JPEG compression) move through an ISP in fixed-function silicon (as in an ASIC) one cycle at a time, the total amount of data processed is 1.368 GBpsec. Accounting for JPEG compression as the last step brings the amount of data to well over 2GB/sec in processing through custom silicon and CPU/DSP cores. One would never stream raw Bayer image video to the cloud for processing - this work must be performed as close to the video sensor as possible.
