High availability across Azure regions

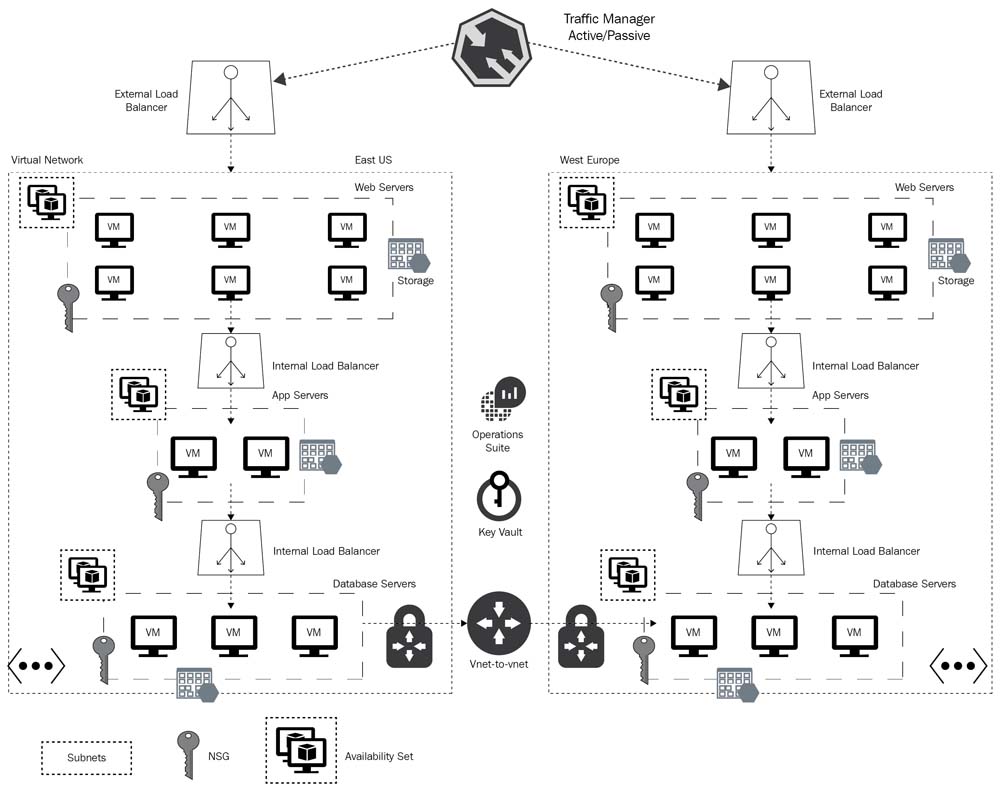

The architecture shown next shows similar deployments on two different Azure regions. As shown in the diagram, both the regions have the same resources deployed. High availability is designed at the individual resource level within these regions. There are multiple VMs at each tier, connected through the load balancer, and they are part of the availability set. These VMs are placed on separate fault and update domains. While the web servers are connected to external load balancers, the rest of the tiers, such as application and database tiers, have internal load balancers. It should be noted that application load balancers can be used for web servers and application tiers instead of Azure load balancers if there is a need for advanced services, such as session affinity, SSL termination, advance security using WAF, and path-based routing. Databases in both the regions are connected to each other using VNET peering and gateways. This is helpful in configuring log shipping, SQL Server AlwaysOn, and other data synchronization techniques.

The endpoints of load balancers from both the regions are used to configure Traffic Manager endpoints, and traffic is routed based on the priority load balancing method. Traffic Manager helps in routing all requests to the East US region and, after failover, to West Europe in the case of the non-availability of the first region:
